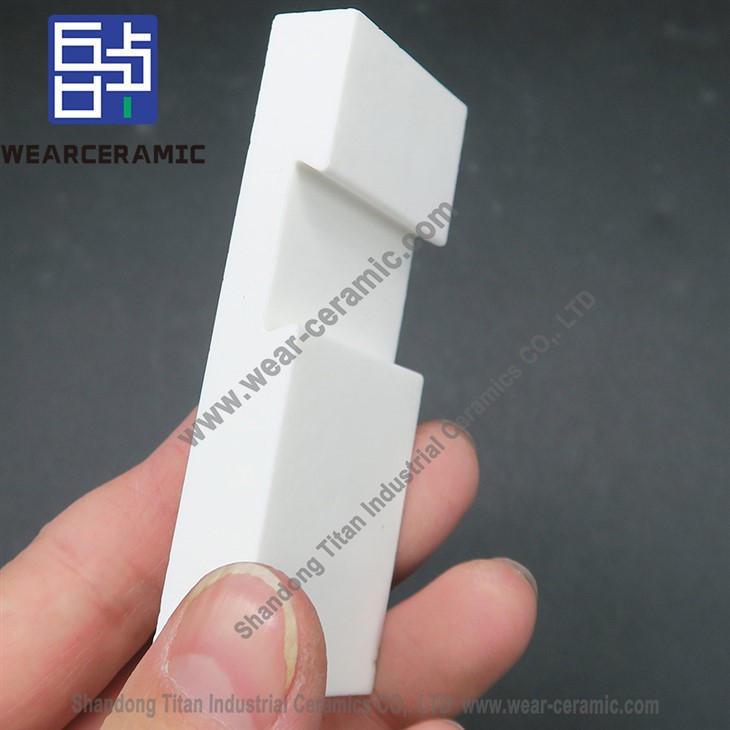

Dovetail Ceramic Liner
Product Material:Alumina Ceramic
AL2O3 Content(%):92/95
Bulk density(g/cm3):≥3.6/≥3.7
What is a Dovetail slot liner?
One unique shape of ceramic is dovetail slot wear-resistant ceramic. It can be put in without the need for stud welding or ceramic adhesive. To secure the ceramic to the apparatus, pure mechanical force is used. It is a material with a unique structure and shape that resists wear. It can increase the enterprise's production efficiency, prolong the equipment's service life, and shield it from wear.
Specification
| Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
| AL2O3(%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
| ZrO2(%) | - | - | - | ≥21 | 94.8±0.5 |
|
Bending strength (Mpa) |
≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
|
Compressive strength (Mpa) |
≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
|
Fracture toughness (MPam1/2) |
≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
|
Rockwell hardness (HRA) |
≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
What fields are it mainly used in?
The production process of Dovetail Ceramic liner is complicated and the cost is high. They are mostly used in high-temperature conditions, thermal power plants, and steel plants, as well as anti-wear equipment in industries such as mining, cement, and smelting.
How to install the card slot?
1. Weld the dovetail guide rail in the wear area of the equipment.
2. Connect the wear-resistant ceramic to the dovetail guide tube.
3. Form a mechanical self-locking and complete the installation.
What are its advantages?
1. High temperature resistance, stable and non-falling: Dovetail Ceramic liner is installed by mechanical force, will not be affected by high temperature, and the machine runs smoothly.
2. Wear resistance: The Dovetail Ceramic liner only changes the shape, and its own properties do not change.
3. Impact resistance: It has a special shape and a large thickness, and has strong impact resistance.

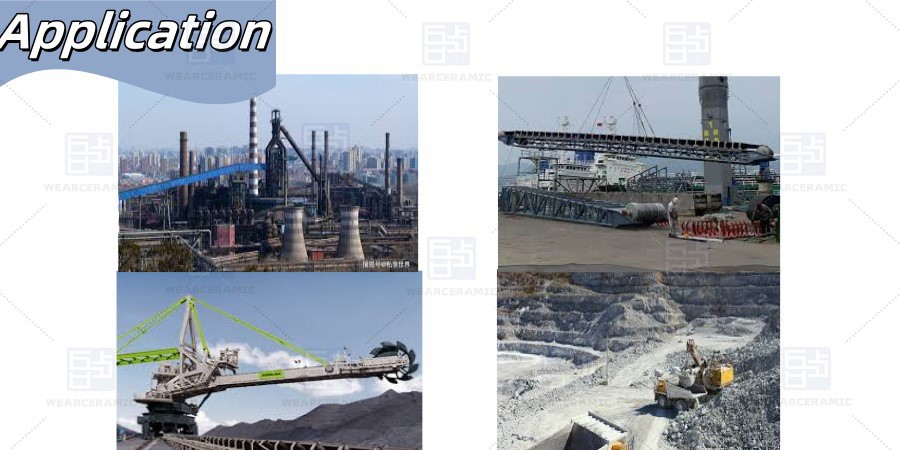

Application
