Aluminum Oxide Wear-resistant Welding Plate With Hole
Aluminum Oxide Wear-resistant Welding Plate With Hole
Aluminum Oxide Wear-resistant Welding Plate With Hole
Aluminum Oxide Wear-resistant Welding Plate With Hole
Aluminum Oxide Wear-resistant Welding Plate With Hole
Aluminum Oxide Wear-resistant Welding Plate With Hole
Aluminum Oxide Wear-resistant Welding Plate With Hole
Product Material: Alumina Ceramic
Alumina Content: 92% / 95%
Product Size: Customized
Product Color: White
Certifified: ISO 9001
Customized: Availiable
Product Detail
Alumina wear-resistant welding flat hole plate is in the middle of the ordinary ceramic plate more than one or more round hole, the role of the round hole is through the welding process, the plate and the working surface connection. Bo Mai ceramics production and sales of a variety of specifications of alumina wear-resistant welded flat hole plate.
Properties
Aluminum oxide wear-resistant welded flat hole plate has abrasion resistance, impact resistance, corrosion resistance, high temperature resistant, construction is convenient wait for a characteristic, is the electric power, metallurgy, coal, oil, cement, chemical industry, machinery, etc material (such as ash, coal, mineral powder, tailings, cement, etc.) conveying equipment surface wear resistance of the ideal material, in the high temperature corrosion, high temperature wear or high temperature corrosion situations is very safe and reliable, Its service life is ten to twenty times higher than that of cast stone, wear resistant alloy cast steel, steel plastic, steel rubber and other materials.
Application direction
Aluminum oxide wear-resistant welding flat hole plate high temperature environment, ordinary adhesive board generally work in about 100 degrees, even if the use of high temperature glue can only work in about 300, but the use of this board can withstand higher.
Specifications
| Item/Product | 92Series | 95Series |
| Al2O3(%) | ≥92 | ≥95 |
| Hardness(Mohs) | 9 | 9 |
| Water Absorption(%) | ≤0.02 | ≤0.02 |
| Fracture toughness(MPa) | 3.65 | 3.75 |
| Bending strength(MPa) | 255 | 275 |
| Density(g/cm3) | ≥3.60 | ≥3.65 |
| Compressive Strength(MPa) | ≥850 | ≥900 |
| Thermal Conductivity(W/m.K) | 16.8 | 16.8 |

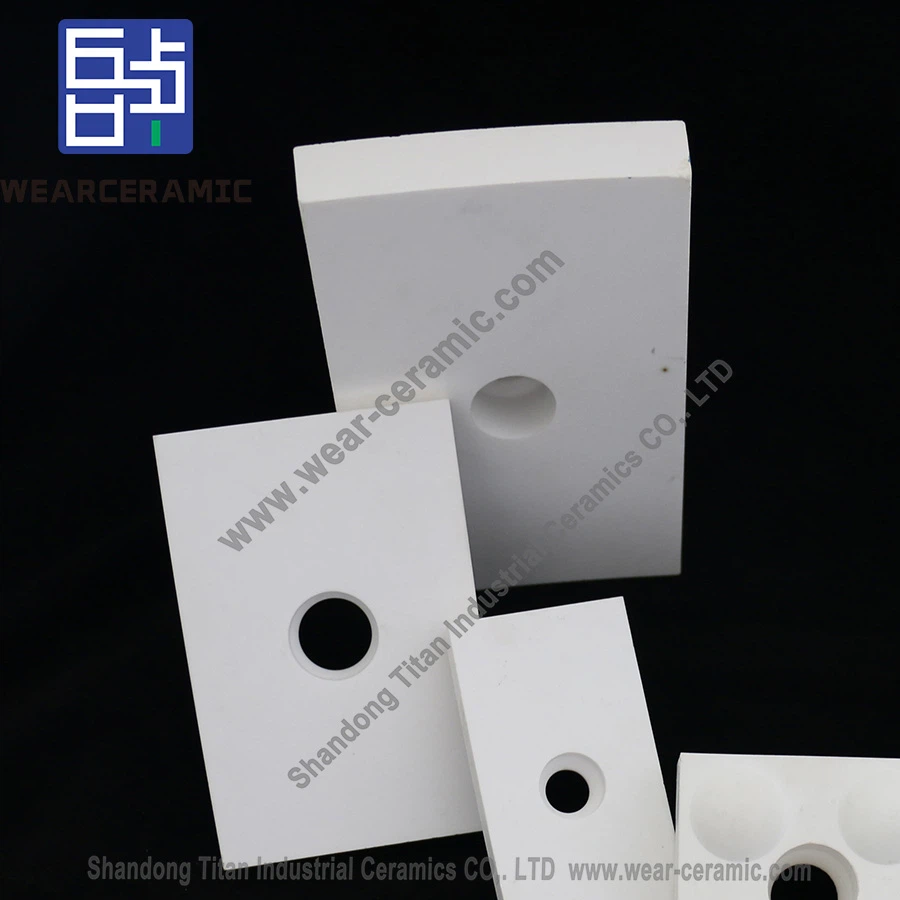

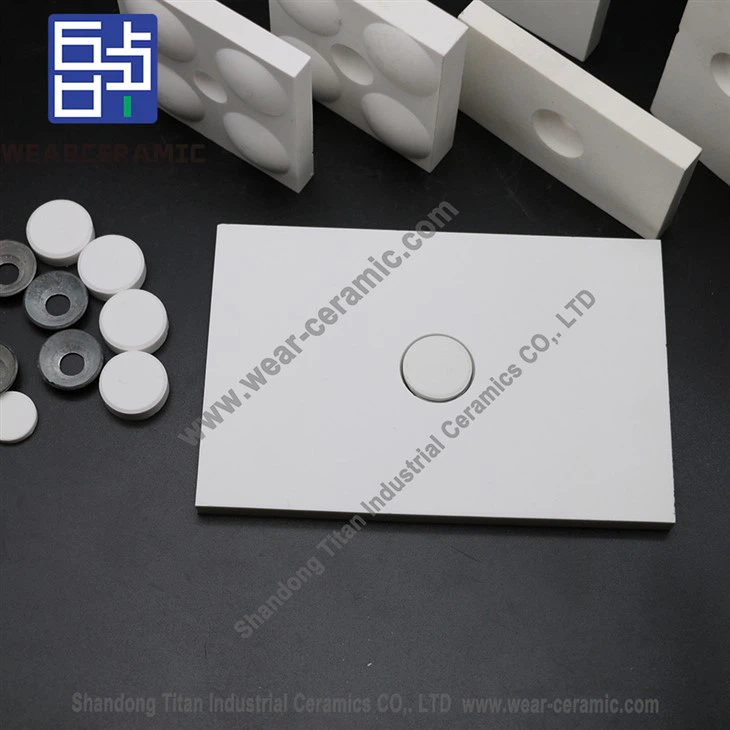

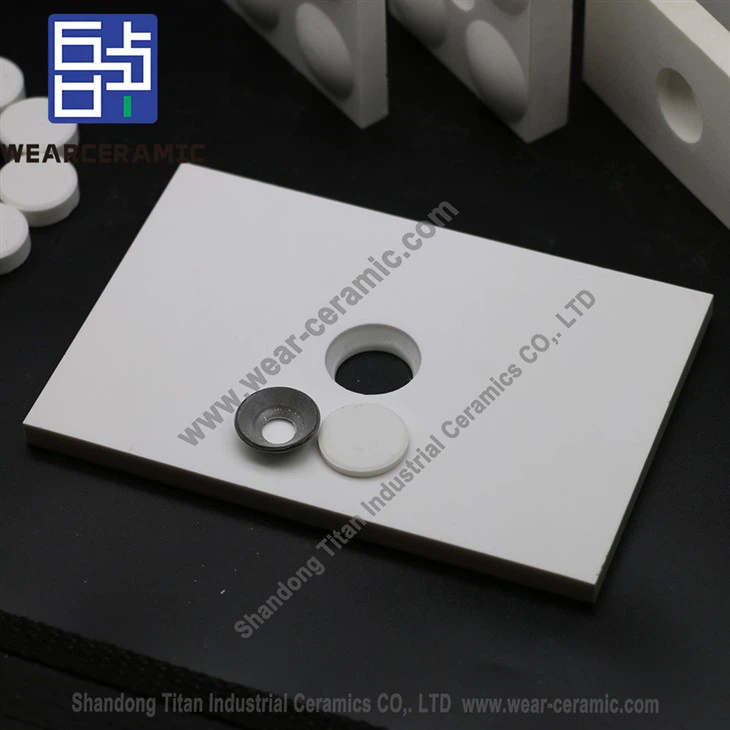

Product Photo
Factory Photo
Hot Tags: aluminum oxide wear-resistant welding plate with hole, manufacturers, suppliers, factory, price, made in China, Rubber Chute Liner, Wear Resistant Ceramic Liners, weldable alumina tile, Weldable Wear Plate Lining Ceramic Plate, alumina ceramic cylinder, square ceramic tile
