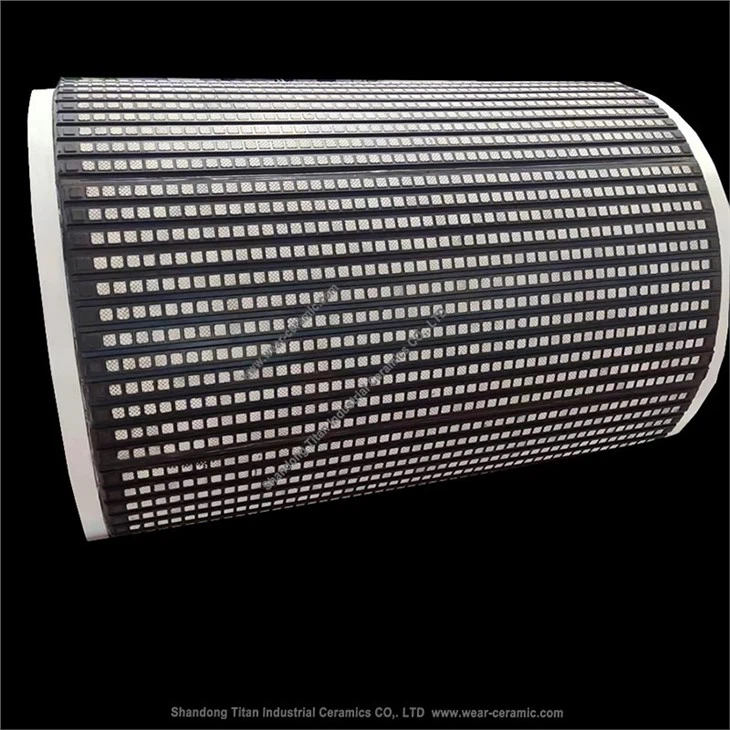

Conveyor Pulley Lagging
Product Code: BMG
Alumina Content: 92% / 95%
Adhesive between steel and rubber: ≥3.5MPa
Certifified: ISO 9001
Adhesive between rubber and ceramic: ≥3.5MPa
Aging period: ≥1.5 years
Working Temperature: -50-200 ℃
Introduction
The belt conveyor has a strong conveying capacity, which can save a lot of manpower and material resources and greatly improve work efficiency. However, some problems will inevitably occur in long-term work. The conveyor belt will sometimes slip. The main reason for the slippage is the friction. The friction between the conveyor belt and the roller is insufficient, and the speed of the conveyor belt will be lower than that of the roller, resulting in slipping. . Most of the reasons for the lack of friction between the roller and the conveyor belt are that the material has too much water content or the working environment is humid. It is necessary to wrap the roller with ceramic rubber sheet, which is suitable for wet environments, and increase the friction between the roller and the conveyor belt.
Specifications
|
|
Rubber |
|
Bulk density(g/cm3) |
1.4 |
|
Tensile strenth at break (MPa) |
≥14 |
|
Elongation at break (%) |
≥250 |
|
Shore hardness (HA) |
48-65 |
|
Adhesive between steel and rubber (MPa) |
≥3.5 |
|
Adhesive between rubber and ceramic (MPa) |
≥3.5 |
|
Thermal conductivity (normal temperature) (W/M·K) |
2 |
|
Aging period (years) |
≥1.5 |
|
Working temperature(℃) |
-50-200 |
|
Series |
BM92 |
BMG95 |
|
AL2O3 (%) |
92±0.5 |
95±0.5 |
|
Bulk density(g/cm3) |
≥3.6 |
≥3.65 |
|
Compressive strength (MPa) |
≥1050 |
≥1300 |
|
Bending strength (MPa) |
≥220 |
≥250 |
|
Fracture toughness (MPam1/2) |
≥3.70 |
≥3.80 |
|
Rockwell hardness (HRA) |
≥82 |
≥85 |
|
Loss bulk (cm3) |
≤0.25 |
≤0.2 |
Features
- Anti-slip. There are protrusions of various shapes on the ceramic surface, the friction coefficient is three times that of traditional rubber, and it can prevent belt deviation and improve conveying efficiency.
- The ceramic surface is designed without edges and corners, so there will be no belt wear.
- There is no relative sliding between the roller and the belt, which can protect the belt from being worn.
- Under the same load, the belt tension can be reduced and the belt life can be extended.
Application
- Conveyor pulley lagging is suitable for extremely harsh conditions such as high abrasion, easy slipping and wet materials or surrounding environment.
- Especially suitable for steel cable conveyor belts and high-speed, high-tension conveyor belts.
