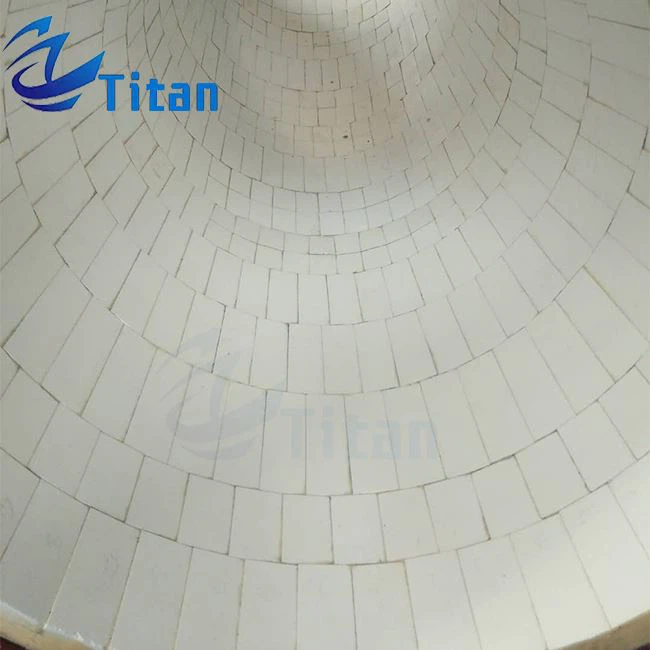

Lined Ceramic Wear-resistant Pipes
Material: Alumina Ceramic
Al2O3 92% 95%
Bending strength(MPa) >=220 250 300 400 800
Compressive strength(MPa) >=1050 1300 1600 2000
Fracture toughness (MPam1/2) >=3.7 3.8 4.0 4.5 7
Rockwell hardness (HRA) >=82 85 88 90
Loss bulk(cm3) <=0.25 0.2 0.15 0.05 0.02
Bulk density(g/cm3) >=3.6 3.65 3.7 4.1 5.9
Product Details
The lined ceramic wear-resistant pipe is a new type of wear-resistant pipeline that uses a special process to firmly combine the ceramic and the metal tube, and uses the high strength and high hardness of the wear-resistant ceramic to increase the wear resistance and service life of the pipeline.
Features
1. Wear resistance: the lining ceramic of the wear-resistant ceramic tube is mainly made of high-purity alumina, which is made of ceramic material through a special sintering process. .
2. Corrosion resistance: wear-resistant ceramics are stable α-alumina formed by alumina powder calcined at a high temperature of about 2000 ° C.
3. High temperature resistance.The lined ceramic wear-resistant pipes have a very long life in the high temperature condition.
4. Erosion resistance.
5. Light weight, saving manpower and material resources.
Technical parameters
Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
AL2O3 (%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
ZrO2 (%) | - | - | - | ≥21 | 94.8±0.5 |
Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
Compressive strength (MPa) | ≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
Bending strength (MPa) | ≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
Rockwell hardness (HRA) | ≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
Loss bulk (cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
Product Application
Lined Ceramic Wear-resistant Pipes can be widely used in electric power, metallurgy, mining, coal, chemical and other industries as a medium for transporting sand, stone, pulverized coal, ash, aluminum and other materials.

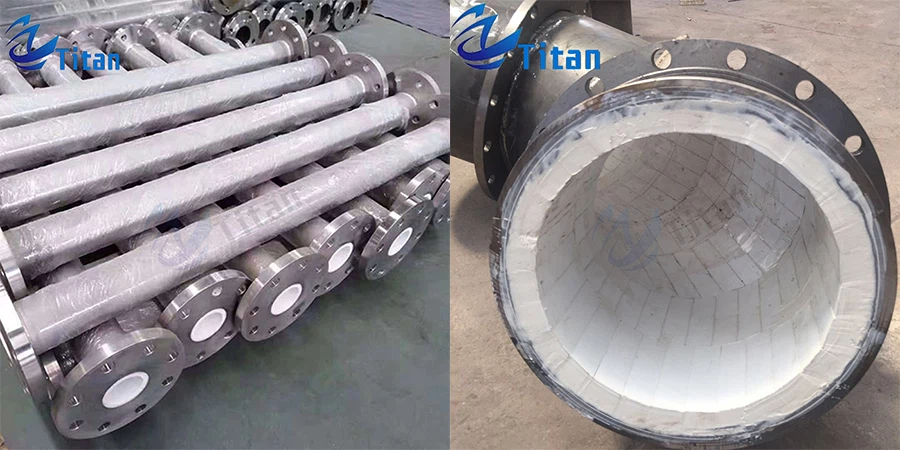

Our product

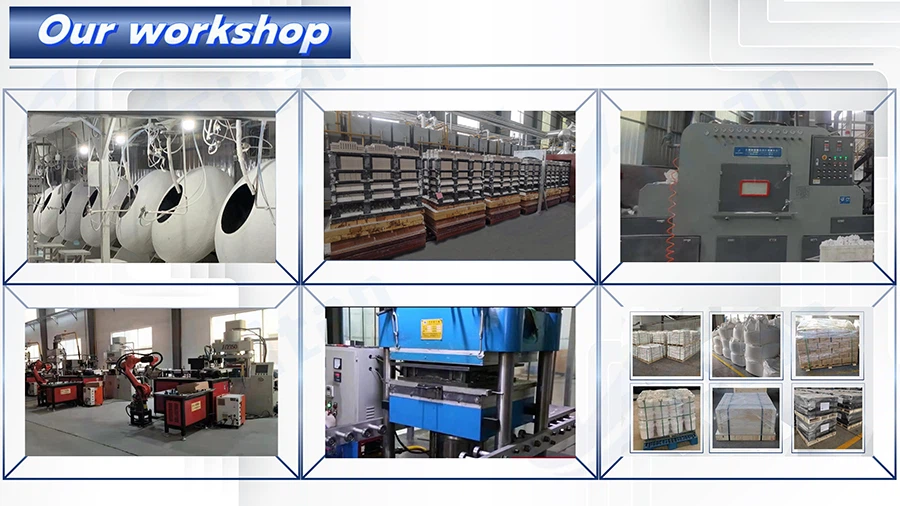

Our workshop
