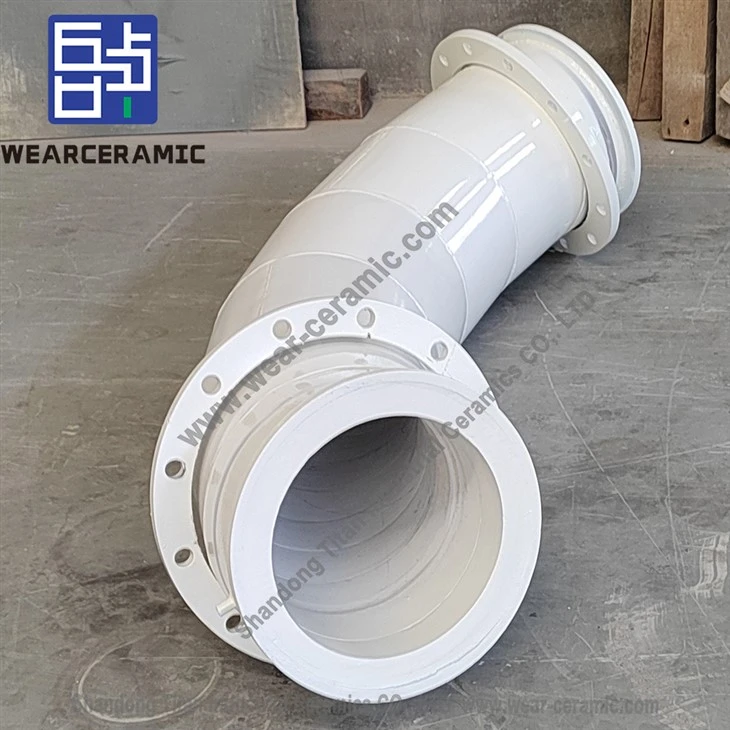

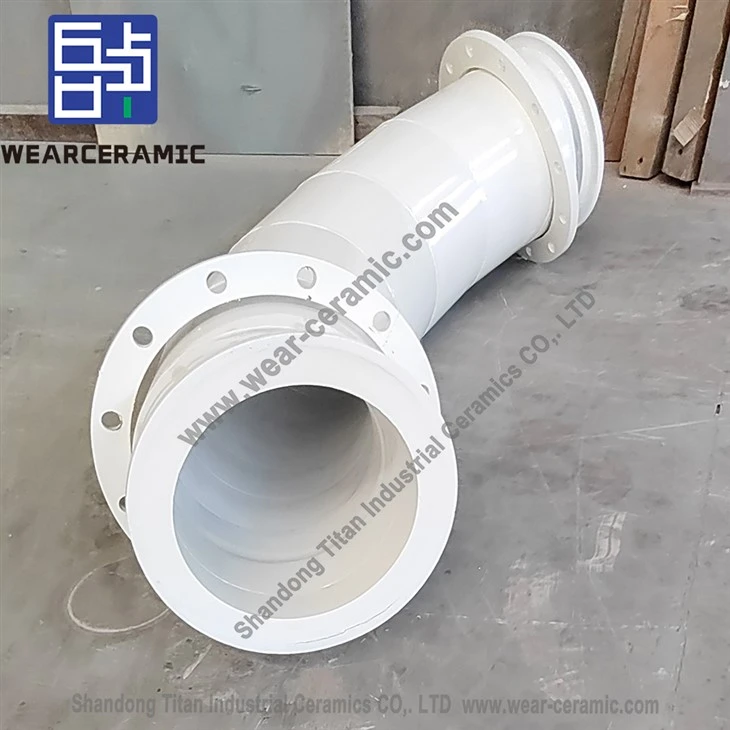

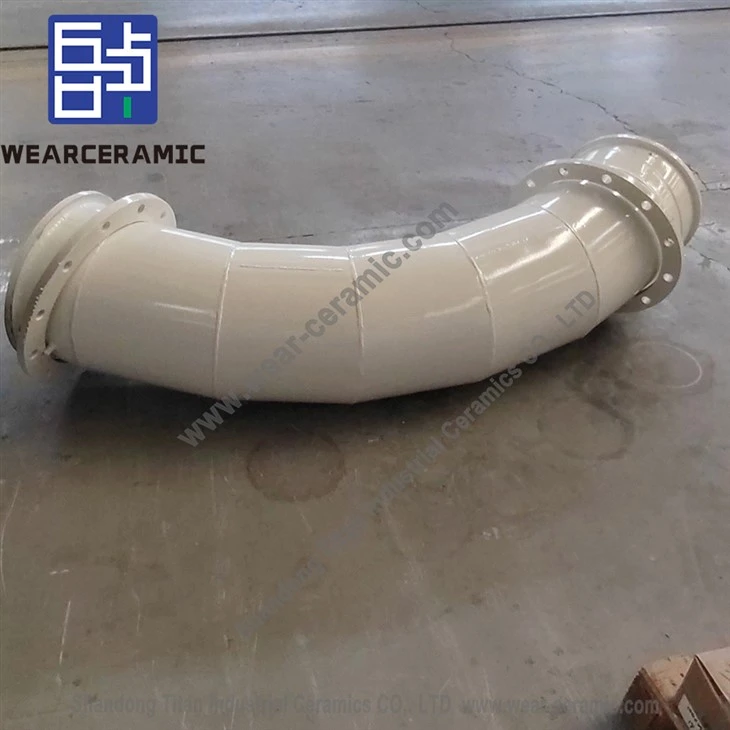

Ceramic-lined Tube Elbow
Al2O3 ： 92% 95%
Bending strength(MPa) ： >=220 250
Compressive strength(MPa) ： >=1050 1300
Fracture toughness (MPam1/2) ： >=3.7 3.8
Rockwell hardness (HRA)： >=82 85
Loss bulk(cm3)： <=0.25 0.2
Bulk density(g/cm3) ： >=3.6 3.65
Feature：corrosion resistance,high hardness, compact resistance.
Details
The wear-resistant ceramics lining tiles and tube inside of pipeline are made of alumina and zirconia as the main raw materials, and rare metal oxides as solvents, which are calcined at a high temperature of more than 1650 degrees, and then arched, Stud welding, high temperature resistant inorganic bonding and other methods are combined and fixed on the inner wall of the steel pipe.
Ceramic-lined Tube Elbow has the advantages of high wear resistance, good corrosion resistance and high temperature resistance, low engineering cost, long life, light weight, convenient transportation and installation, etc.
Properties
1.Ceramic-lined elbow has long service life, which is more than 20 times of common wear-resistant elbow under the same conditions.
2.Heat resistance, can be used in high temperature environment for a long time.
3.Light weight, the same inner diameter is more than 50% lighter than wear-resistant alloy elbow.
Application
| Power industry | coal-conveying pipeline, dry ash pipeline, raw material hopper |
| Mine industry | outlet pipeline,entrifugal dehydrator |
| Cement industry | vertical mill feed chute,hopper, cyclone |
| Steel making blast furnace | mixing drum, dust removing pipe, dust collecting pipe |
Technical specific
Series | BM92H | BMG95H |
AL2O3 (%) | 92±0.5 | 95±0.5 |
Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Compressive strength (MPa) | ≥1050 | ≥1300 |
Bending strength (MPa) | ≥220 | ≥250 |
Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 |
Rockwell hardness (HRA) | ≥82 | ≥85 |
Mohs hardness | 9 | 9 |
Picture reference

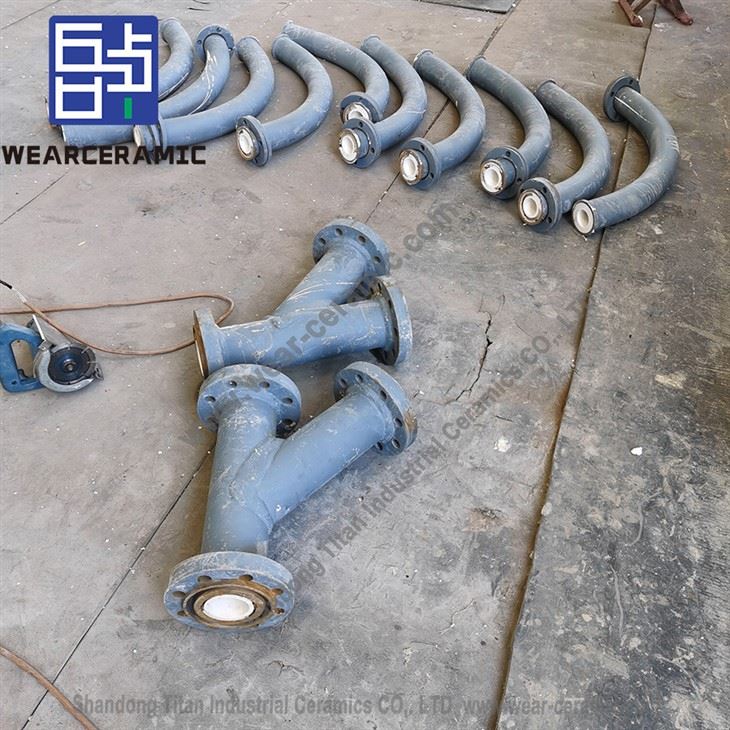

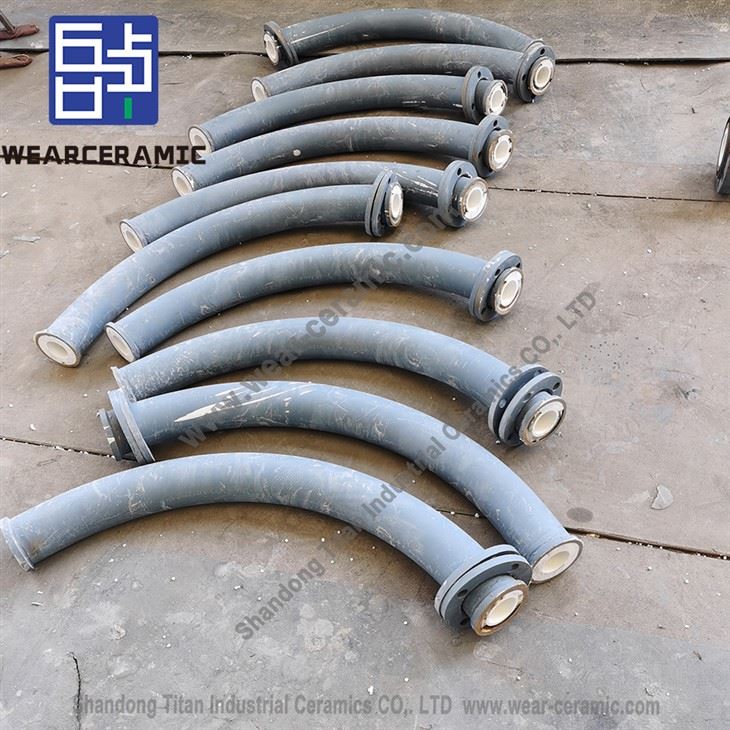

Our pipe
Our other product
