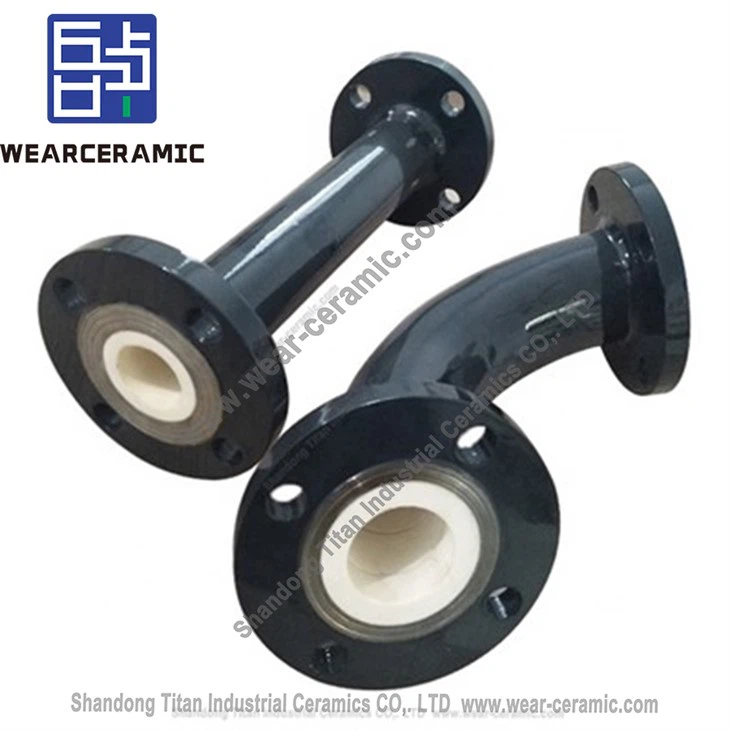

Wear Resistant Ceramic Bend Pipe
Product Introduction:
Titan wear-resistant ceramic elbow is a kind of high-temperature resistant inorganic adhesive, which pastes special ceramics on the inner wall of the pipe and forms a solid wear-resistant layer after being heated and solidified. Products include wear-resistant ceramic pipe, wear-resistant ceramic elbow, ceramic elbow, etc.
The pipeline of pulverized coal conveying and dedusting system is used to transport high temperature gas with hard particles. Its operation features are high temperature, high flow rate, high hardness of particles, and serious wear of equipment, especially the elbow part. No protective measures are taken, which is generally worn through in less than one year. Most of these equipment are on the high-altitude bracket, which is inconvenient for maintenance. Once worn through, it will seriously affect the safe use of the equipment.
The wear-resistant ceramic elbow produced by Titan Ceramics Co., Ltd. is a kind of high temperature resistant inorganic adhesive, which pastes special corundum ceramics on the inner wall of the pipeline and forms a solid wear-resistant layer after being heated and solidified. The unique ceramic design enables 360 ° mechanical self-locking force to be formed between the ceramic blocks after the last block of a circle is embedded, so as to ensure the tight combination of ceramics.
Chemical Composition and Physical Properties:
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 |
| Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 |
| Rockwell hardness(HRA) | ≥82 | ≥85 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
