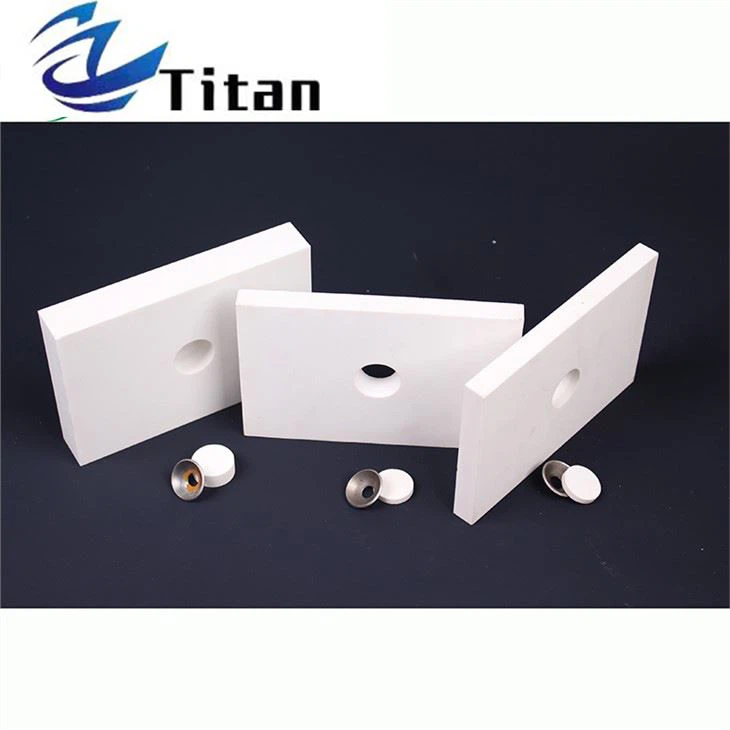

Rubber Backed Ceramic Wear Plate for Mining Industry
Our company continuously creates high turnover rate, reduces inventory, improves shortage and expands industrial ceramic tile, Wear Resistant Ceramic Lining with Buckle, Alumina Lining Cube sales channels. After years of hard work and exploration, we now have domestic advanced production equipment and technology, which are widely used in many fields. We strive to become a brand with first-class management, excellent quality and honest service. With the goal of providing high quality products to customers at low cots, we've been committed to improving its capacities in research, development, manufacturing and management.
Product introduction:

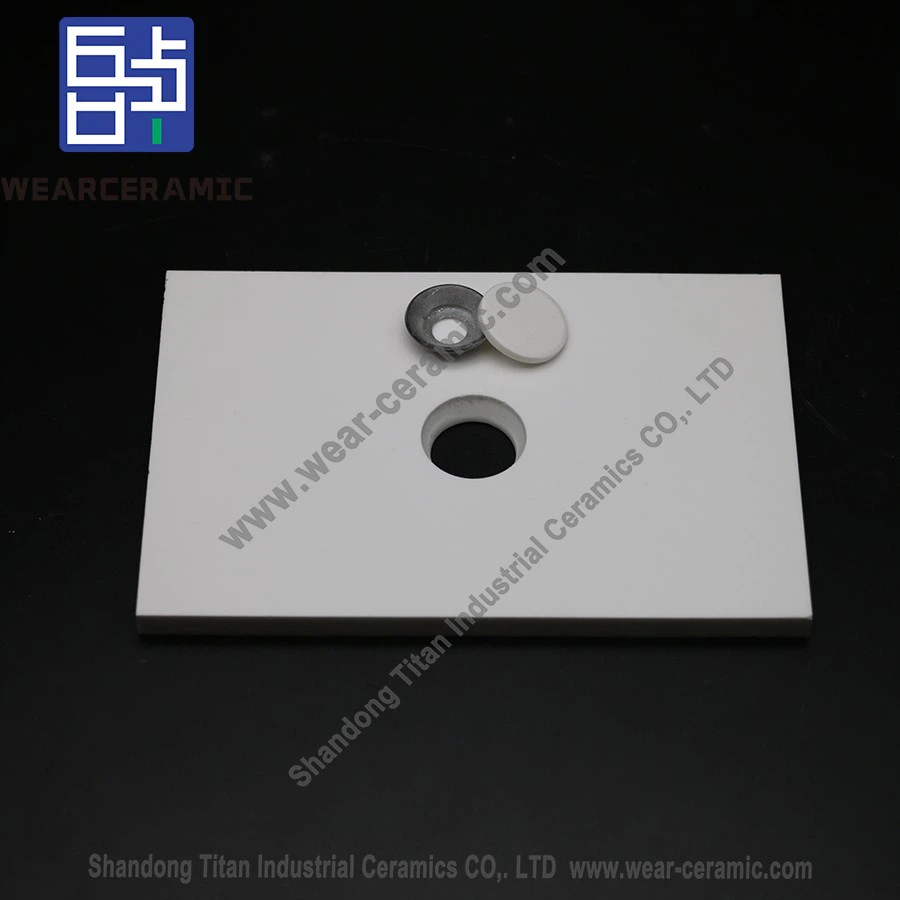

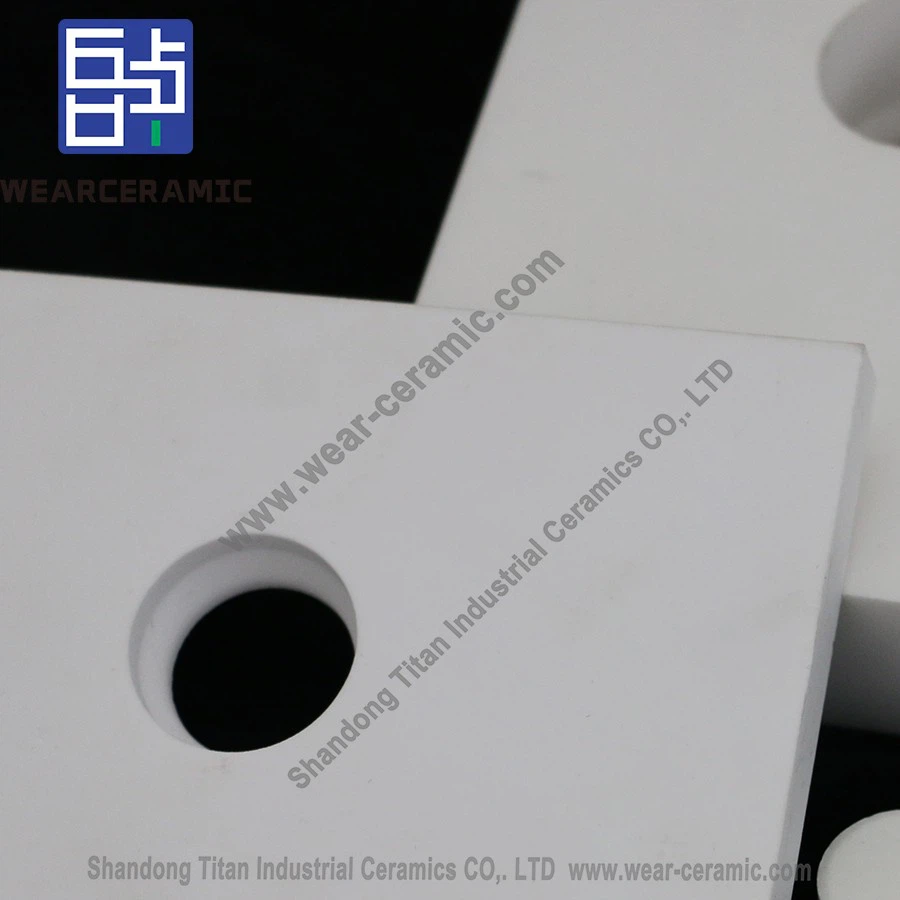

The main component of ceramic wear plates is high-purity alumina. Alumina is the most widely used ceramic material due to its excellent performance and good cost performance.Titan ceramic wear plates are widely used in the conditions that need wear protection and pressure resistance protection. Because of its insulation performance, it also can be used in electronic industry.
Product features:
high hardness
super wear resistance
super corrosion resistance
good insulation perform
Application:
Ceramic wear plates are suitable for anti-wear of material conveying equipment, chute, hopper, etc. in thermal power, steel, cement, coal, mining, chemical industry etc.
Specification Available:
| Size | Length | Width | Height |
| Flat plate(without hole) | 50-150 | 25-100 | 6-50 |
| Flat plate(with hole) | 50-150 | 30-100 | 10-50 |
| Trapezoidal plate | 50-150 | 20-100 | 8-50 |
Chemical composition and physical prperties:
| Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
| AL2O3(%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
| ZrO2(%) | - | - | - | ≥21 | 94.8±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
| Fracture toughness(MPam1/2) | ≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
| Rockwell hardness(HRA) | ≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
We have achieved rapid development in recent years, established a scientific and technological service team full of innovation ability to continuously promote the upgrading of Rubber Backed Ceramic Wear Plate for Mining Industry and application technologies. Our dedicated spirit is the unremitting pursuit of perfection, we provide our customers with better products and more intimate after-sales service. Our company has constructed a high efficiency, low-cost organization system, with high-quality and low-cost products to dedicate to the majority of consumers.
