Manufacturers Alumina Wear Resistant Liner Mosaic Sheet Paste Directly
We are in a relatively high position in the industry, and we maintain close cooperation with foreign suppliers to provide ceramic alumina grinding, ceramic sheet, Alumina grinding ball, our products are exported to many countries and regions. You can see more details in our website. We have been also the appointed OEM manufacturing unit for several worlds' famous merchandise brands.
Product Introduction
Wear-resistant ceramics are special corundum ceramics made of Al2O3 as the main raw material, rare metal oxides as flux, and fired at a high temperature of 1700 degrees, and then combined with special rubber and high-strength organic/inorganic binders.

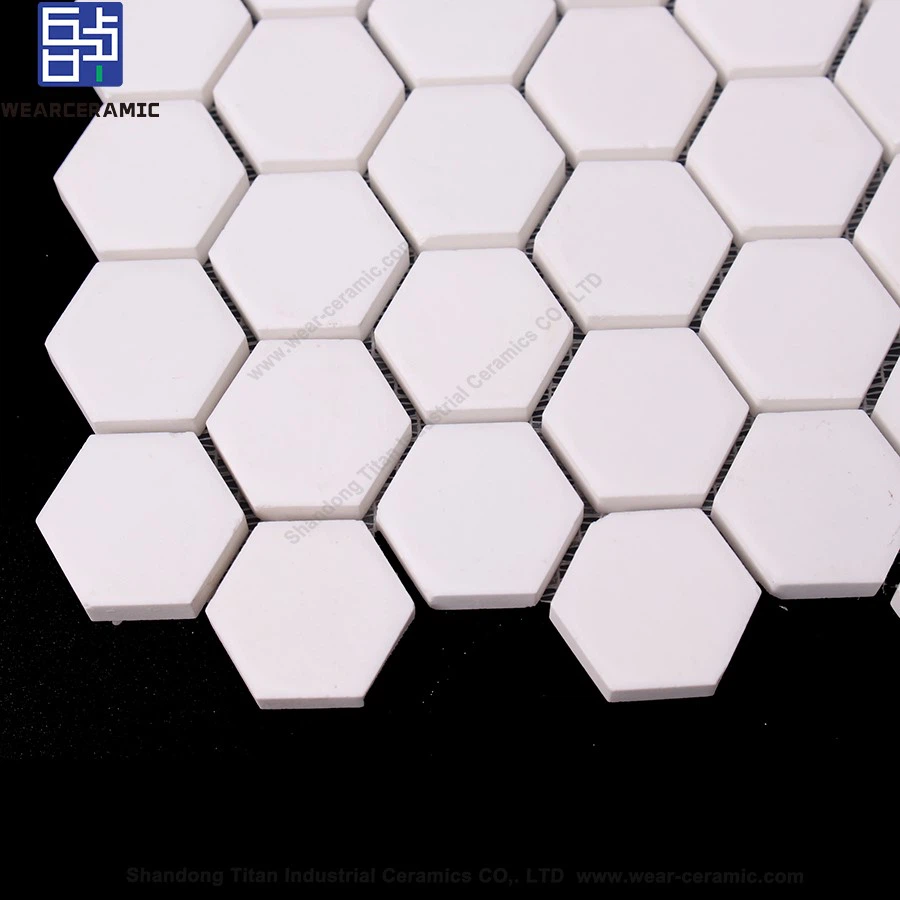

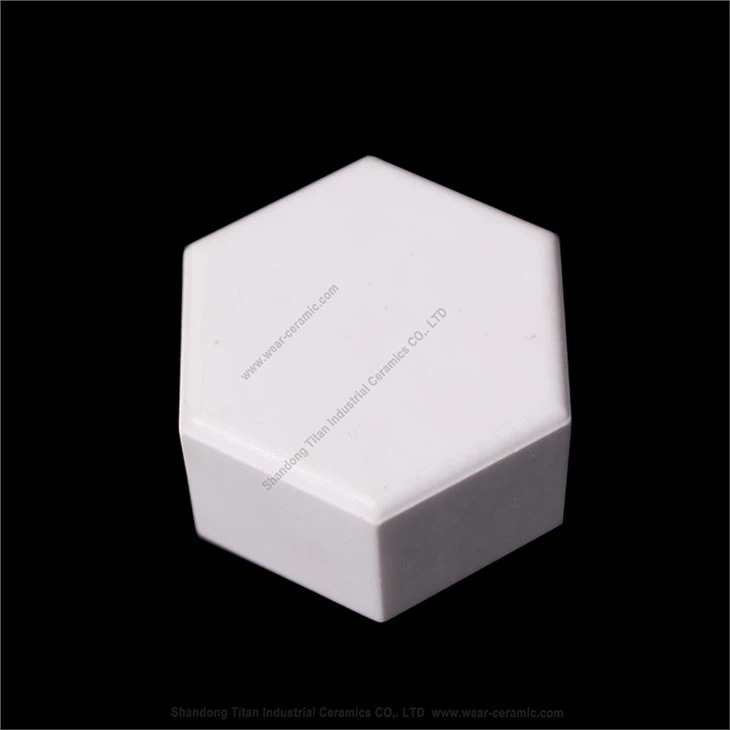

The hexagonal ceramic lining sheet is a kind of wear resistant medium which should be pasted as a whole when use it. We can pasted into different sizes according to the size of equipments. Titan can produces hexagonal ceramic lining with different thickness and width.
Advantages
1. High hardness: its Rockwell hardness is HRA80-90, the hardness is second only to diamond, far exceeding the wear resistance of wear-resistant steel and stainless steel.
2. Excellent wear resistance: its wear resistance is equivalent to 266 times that of manganese steel and 171.5 times that of high chromium cast iron. According to our customer follow-up survey over the past ten years, under the same working conditions, the service life of the equipment can be extended by at least ten times.
3. Light weight: its density is 3.6g/cm3, which is only half of that of steel, which can greatly reduce the load on equipment.
4. Strong bonding and good heat resistance: the wear-resistant ceramic lining is pasted on the inner wall of the equipment with heat-resistant superglue. Long-term operation without aging at 350°C
5 .Hexagonal Ceramic Tiles Sheet also has the characteristic of easy to paste,strong wearability,impact resistance.
Specification Available
| Length*Width(mm) | Height(mm) |
| 12*12 | 6~25 |
| 12.5*12.5 | 6~25 |
Chemical composition and physical properties
| Series | BM92 | BMG95 |
| AL2O3(%) | 92±0.5 | 95±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 |
| Fracture toughness (MPam1/2) | ≥3.70 | ≥3.80 |
| Rockwell hardness(HRA) | ≥82 | ≥85 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 |
Application
The hexagonal ceramic lining sheet is widely used in hoppers, pipes, elbows, feeders and other processing equipments of the steel thermal power, cement, coal, chemical industry etc.
Our ceramic tiles
The production process
FAQ
1.Q:Are you trade company or manufacture?
A:We are manufacture with professional experience,and the price is the factory price.
2.Q:How to control the quality?
A:We have strict quality by QC team.
3.Q:How long is the delivery time?
A:It is about 5-7 days after payment for stock goods,10-15 days for new producing goods.
4.Q: How to get the sample ?
A: Please contact us for send your samples.
5.Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient .
Generally,50% in advance,50% before shipment
6.Q:Can you do OES service?
A:Yes,size & shape could be made as customer requirment
Based on our many years of experience, not only learning the advanced level of the industry, but also through our own repeated experiments to compare and improve, we promise that our Manufacturers Alumina Wear Resistant Liner Mosaic Sheet Paste Directly has the most reliable and stable performance. Presently, we are sincerely looking forward to cooperating with more overseas customers based on mutual benefits. Our company adheres to the stable product quality and reasonable price, and continuously develops the core power in the fierce market competition.
