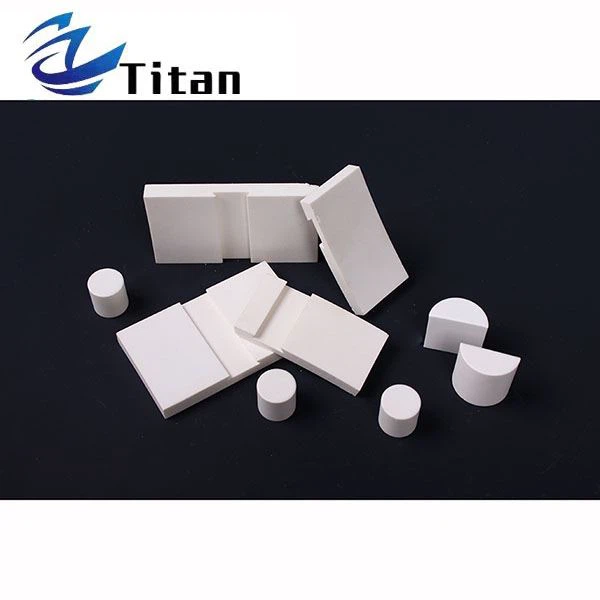

Heat Resistant 99% Al2O3 Alumina Ceramic Tube Liner
Our Abrasion Resistant Steel Plate, Bimetallic Wear Resistant Steel Plate, Inert Alumina Ceramic Filler Balls incorporates years of industry experience and industry application knowledge, thus has a superior performance and stability. We are grateful to our customers for providing the foundation for the survival and development of the enterprise, as well as the trust and support of our cadres and employees. Additionally, we welcome visitors to our factory from all over the world for much better recognizing of our corporation. We uphold the concept of returning resources to society and always adhere to the development of charity. Our company carefully analyzes the consumer psychology and other related factors in brand positioning, and the positioning is accurate, so we have achieved the success of brand strategy.
Product introduction:

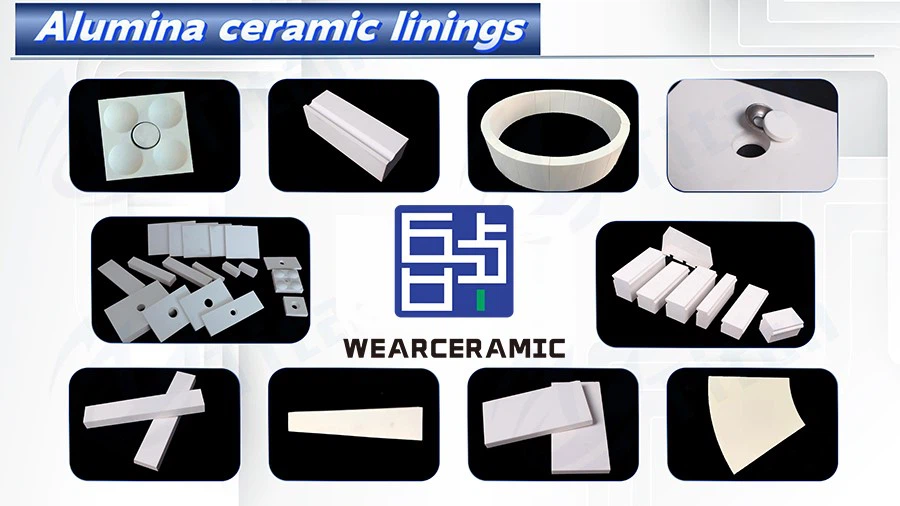

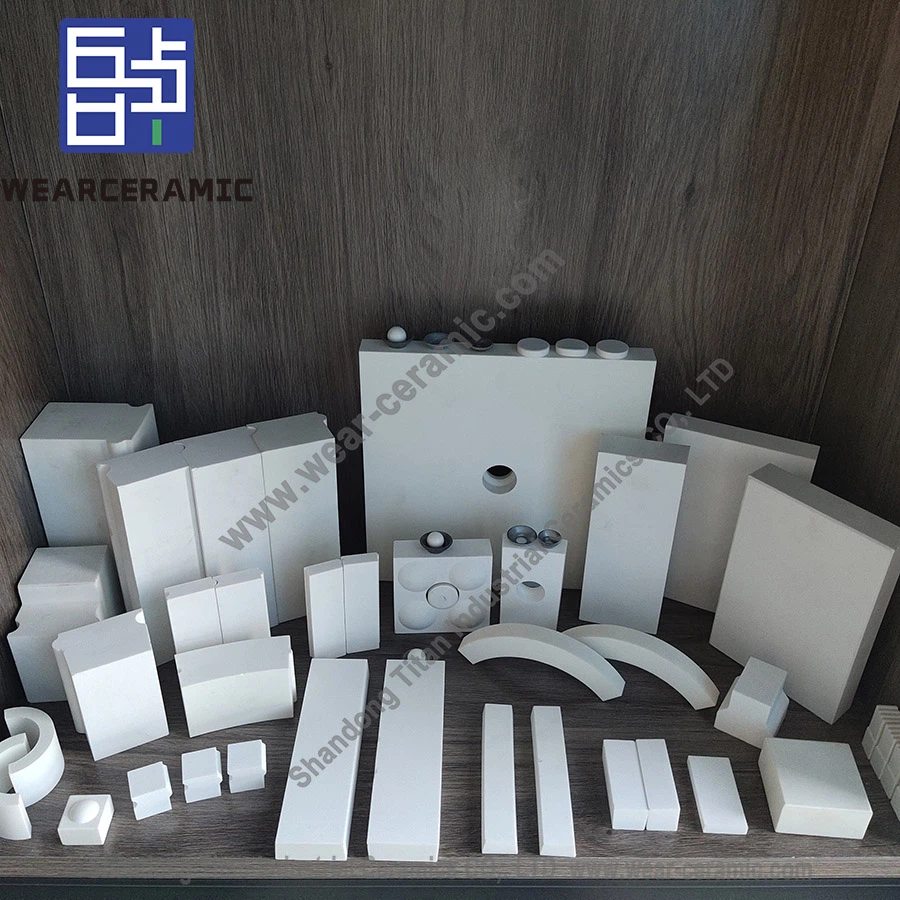

Ceramic liners are also called wear resistant ceramic lining board, high aluminum lining board, alumina ceramic board, ceramic lining. Ceramic liner is a kind of high-quality wear resistant meterials widely used in industrial equipments.
Ceramic liners have the characteristics of good wear resistance, impact resistance, easy installation. Its theoretical abrasive resistance is equal to 260 times of manganese steel, 170 times of chromium steel.
Product application：
Ceramic liners are mainly used in steel, thermal power, coal, cement industry in material conveying equipments and powder selecting equipments.
Specification Available:
| Size | Length | Width | Height |
| Flat liner | 50-150 | 25-100 | 6-50 |
| Weld liner | 50-150 | 30-100 | 10-50 |
| Trapezoidal liner | 50-150 | 20-100 | 8-50 |
Chemical composition and physical properties:
| Series | BM92 | BMG95 | BME95 | BMZTA | BMZR |
| AL2O3(%) | 92±0.5 | 95±0.5 | 95±0.5 | ≥75 | - |
| ZrO2(%) | - | - | - | ≥21 | 94.8±0.5 |
| Bending strength(Mpa) | ≥220 | ≥250 | ≥300 | ≥400 | ≥800 |
| Compressive strength(Mpa) | ≥1050 | ≥1300 | ≥1600 | ≥2000 | - |
| Fracture toughness(MPam1/2) | ≥3.70 | ≥3.80 | ≥4.0 | ≥4.5 | ≥7 |
| Rockwell hardness(HRA) | ≥82 | ≥85 | ≥88 | ≥90 | ≥88 |
| Wear volume(cm3) | ≤0.25 | ≤0.2 | ≤0.15 | ≤0.05 | ≤0.02 |
| Bulk density(g/cm3) | ≥3.6 | ≥3.65 | ≥3.7 | ≥4.1 | ≥5.9 |
With the tenet of serving users with all our might, we understand users' needs in time and provide them with more satisfactory Heat Resistant 99% Al2O3 Alumina Ceramic Tube Liner. We set up an efficient professional team to achieve personal growth and exceed customer expectations. With stable working conditions and treatment, our company has a certain competitive advantage in attracting talents.
