99% Alumina Ceramic Lining Bricks
We always aim to provide customers with one-stop safety wear resistant ceramic tiles, Ceramic grinding balls, rubber lagging solutions and high-quality friendly service. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. The best and original quality for spare parts is a most important factor for transportation. We always insist on developing with quality, expanding market with brand, and seeking credibility with service as the cornerstone of the company's survival and development. We have professional production equipment, excellent manufacturing technology, sophisticated testing equipment, advanced management concepts and a high-quality workforce.
Product Indroduction
Zirconia ceramic lining bricks are also called wear resistant zirconia ceramic liner, ball mill lining bricks, ball mill lining plates, and wear-resistant ceramic lining bricks.
ZTA zirconium-aluminum composite ceramic wear-resistant lining plate is based on alumina with a certain amount of zirconia ceramic ingredients added. The wear resistance and toughness are between alumina ceramics and zirconia ceramics, and it has high hardness and excellent wear resistance. and toughness characteristics.
Feature
1.gh hardness, second only to diamond, far exceeding wear-resistant steel and stainless steel:
2. Good wear resistance, 60% lower than that of alumina products;
3. Light weight, specific gravity 4.2g/cm3, greatly reducing equipment load;
4. Strong impact resistance, combined with zirconia toughness and wear resistance, the fracture toughness is comparable to that of alumina products increased by 20%, bending strength increased by 70%, greatly improving the impact of materials on equipment;
Chemical composition and physical proeprties
Series | ZTA |
AL2O3(%) | ≥75 |
| ZrO2(%) | ≥21 |
Hardness（Mohs） | 9 |
Bulk density（g/cm³） | ≥4.1 |
Water absorption（％） | 0.01 |
Color | white |
Specification Available
| Type | Length(mm) | Width(mm) | Height(mm) |
| Rectangle brick | 150 | 50 | 90/70/60/50/40 |
| Trapezoid brick | 150 | 50/45 | 90/70/60/50/40 |
| Flake brick | 150 | 25 | 90/70/60/50/40 |
| Half-rectangle brick | 75 | 50 | 90/70/60/50/40 |
Half-trapezoid brick | 75 | 50/45 | 90/70/60/50/40 |
Application
Zirconia ceramic lining bricks are widely used in the lining of ball mills in ceramics, cement, coatings, pigments, chemicals, refractories,etc.

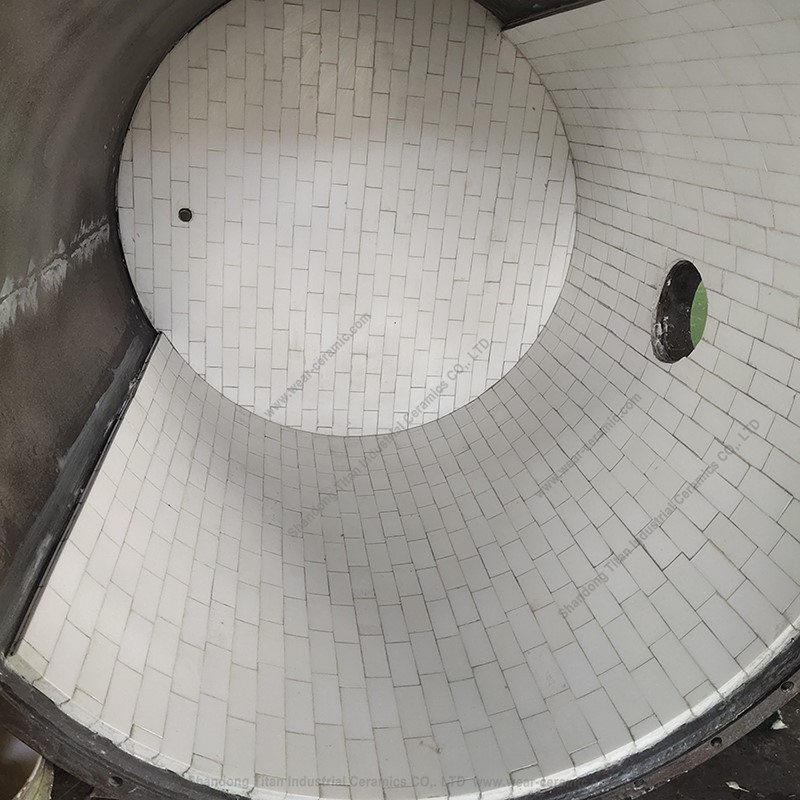

The project case
What else we have?
Our workshop
With our loaded encounter and considerate services, we have now been recognized as a trustworthy supplier for 99% Alumina Ceramic Lining Bricks. We have confidence in providing you with excellent service and ideal products. We also have good cooperation relationships with many good manufacturers so that we can provide almost all of auto parts and after-sales service with high quality standard, lower price level and warmly service to meet demands of customers from different fields and different area.
