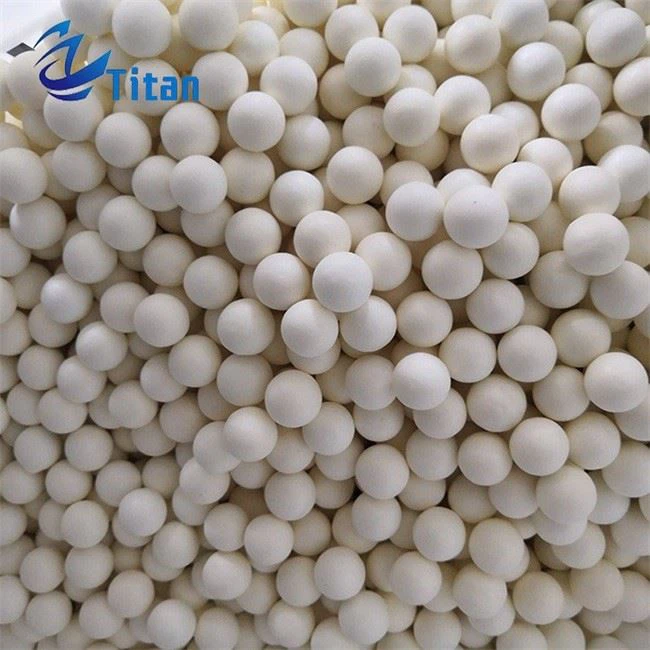

3.5mm Alumina Ceramic ball Grinding Media
video

3.5mm Alumina Ceramic ball Grinding Media

Product Name:3.5mm Alumina Ceramic ball Grinding Media
Product Material:Alumina
Product Size: 0.5-90mm
Product Color:white
Certificate:ISO9001 Customized: available
Product Packaging:25kg/bag/as requirements
Alumina Content: ≥92 / ≥95
Mohs Hardness :9
Bulk Density: ≥3.6
Send Inquiry
Product Introduction

Product Introduction

IMG_0880

TITAN 3.5mm Alumina Ceramic Balls are designed for controlled grinding and fine material dispersion. Their compact spherical shape and wear-resistant ceramic structure support consistent milling, help reduce metallic contamination, and provide a practical choice for industrial processes requiring reliable grinding media.

High-quality chemical clay is used as the raw material for creating 3.5mm alumina Ceramic ball Grinding Media . The properties of ceramic ball grinding media include high strength, high chemical stability, and high heat stability. High temperature, high pressure, acid, alkali, salt, and numerous organic solvents may all be tolerated by inert alumina ceramic balls.
Non-metallic grinding balls made of alumina are frequently used in industrial grinding. Over metal grinding balls, ceramic balls have significant physicochemical benefits.

Product Overview

3.5mm Alumina Ceramic Balls are spherical grinding media manufactured from alumina-based ceramic materials through forming and high-temperature sintering. With a fixed diameter of 3.5 mm, they are suitable for milling processes that require relatively small grinding media for repeated particle contact and material size reduction.

These ceramic grinding balls are commonly used in wet grinding and dispersion systems. Their application value comes from the combination of ceramic hardness, wear resistance, and consistent ball geometry. Compared with steel media, alumina-based media can also help avoid iron contamination in materials where metal particles may affect product quality.



Features


High hardness

The Mohs hardness of alumina ceramics is 9, which is only 1 level lower than that of diamond (diamond has a Mohs hardness of 10).



Good wear resistance and slow consumption.

Corrosion resistance

Alumina is inert and does not react with acids and bases, avoiding corrosion consumption under acidic conditions.



High strength, low broken ball rate, and the appearance is not easy to be out of round after use



High-aluminum ball density > 3.6g/cm3, the density is half of that of steel balls. Under fine grinding conditions, over-grinding and equipment wear are reduced, equipment noise is reduced, and power consumption is reduced.



Non-toxic and harmless, in line with EU ROHS ingredient restriction requirements.

The production process


After manually batching, high-alumina balls are typically ground and pulped in an oil ball mill. Melting, cold isostatic pressing, and firing are used to create it. The high-alumina balls among them must be created in accordance with the component specifications connected to the following production process:

Moisture content of the slurry: 48%.

Slurry spray pressure: 2.3MPa~2.7MPa.

The exhaust gas temperature of spray drying is 103℃~0.5℃.

Moisture content of pressed powder: 0.4%~0.5%.

Application areas

Ceramic ball is ideal grinding media for various equipment such as ball mills, stirring mills, peeling machines, polishing machines, sand mills, and moxa grinding.



Technical specification



AL2O3 (%)

92±0.5

95±0.5

Hardness(Mohs)

9

9

Bulk density(g/cm3)

≥3.6

≥3.7

Self wearing rate(%)

≤0.15

≤0.1

Size(mm)

φ0.5-20

φ0.5-20



Other grinding ball

beads

Workflow

balls

FAQ





01.Who are we?

We are based in Shandong province, China, professional in wear-resistant ceramic ,sell goods to everywhere of the world.

02.How can we guarantee quality?

Always a pre-production sample before mass production;
Always regular quality inspection during mass production
Always final Inspection before shipment;

03.How long is your delivery time?

7-20days working days after all information is confirmed (according to different products).

04.How do I get a quote from your company?

Send your message to our sales staff in the input box below and we will get back to you within a few hours on business days.
You also can contact us directly through the deal manager (click Chat Now on the right side of this page).

05.Which alumina content should I choose?

The choice depends on the required grinding intensity, media wear requirements, product purity, and budget. Higher alumina grades generally offer higher density and hardness, but the most suitable grade should be selected according to the actual process.

06.What information is needed for a quotation?

Please provide the required diameter, alumina content, application, mill type, order quantity, and any specific performance requirements. TITAN can then recommend a suitable product specification.

Looking for 3.5mm alumina ceramic grinding media for your production line?

Contact TITAN with your required alumina content, application, mill type, estimated quantity, and target particle size. Our team will help you evaluate a suitable specification and provide a quotation based on your requirements.
